VHS – Re-appraising Obsolescence

VHS was a hugely successful video format from the late 1970s to early 2000s. It was adopted widely in domestic and professional contexts.

Due to its familiarity and apparent ubiquity you might imagine it is easy to preserve VHS.

Well, think again.

VHS is generally considered to be a low preservation risk because playback equipment is still (just about) available.

There is, however, a huge degree of variation within VHS. This is even before we consider improvements to the format, such as S-VHS (1987), which increased luminance bandwidth and picture quality.

Complicating the preservation picture

The biggest variation within VHS is of recording speed.

Recording speed affects the quality of the recording. It also dictates which machines you can use to play back VHS tapes.

2 large, light-coloured professional video machines with digital counters, needle gauges and multiple dials

SONY SVO-500P and Panasonic AG-650

Domestic VHS could record at three different speeds: Standard Play, which yielded the best quality recordings; Long Play, which doubled recording time but compromised the quality of the recording; Extended or Super Long Play, which trebled recording time but significantly reduced the recording quality. Extended/ Super Long Play was only available on the NTSC standard.

It is generally recognised that you should always use the best quality machines at your disposal to preserve magnetic media.

VHS machines built for domestic use, and the more robust, industrial models vary significantly in quality.

Richard Bennette in The Videomaker wrote (1995): ‘In more expensive VCRs, especially industrial models, the transports use thicker and heavier mounting plates, posts and gears. This helps maintain the ever-critical tape signal distances over many more hours of usage. An inexpensive transport can warp or bend, causing time base errors in the video signals’.

Yet better quality VHS machines, such as the Sony SVO-5800P and Panasonic AG-8700 that we use in the Greatbear Studio, cannot play back Long or Extended Play recordings. They only recorded—and therefore can only play back—Standard Play signals.

This means that recordings made at slower speeds can only be transferred using domestic VHS machines, such as the JVC HM-DR10000 D-VHS or the JVC HR-DVS3 EK.

Domestic VHS tape: significant problems to come

This poses two significant problems within a preservation context.

Firstly, there is concern about the availability of high-functioning domestic VHS machines in the immediate and long-term.

Domestic VHS machines were designed to be mass produced and affordable to the everyday consumer. Parts were made from cheaper materials. They simply were not built to last.

JVC stopped manufacturing standalone VHS machines in 2008.

Used VHS machines are still available. Given the comparative fragility of domestic machines, the ubiquity of the VHS format—especially in its domestic variation—is largely an illusion.

The second problem is the quality of the original Long or Extended Play recording.

silver and black slimline VHS machine

JVC Super-VHS ET

One reason for VHS’s victory over Betamax in the ‘videotape format wars’ was that VHS could record for three hours, compared with Betamax’s one.

As with all media recorded on magnetic tape, slower recording speeds produce poorer quality video and audio.

An Extended Play recording made on a domestic VHS is already in a compromised position, even before you put it in the tape machine and press ‘play.’

Which leads us to a further and significant problem: the ‘press play’ moment.

Interchangeability—the ability to play back a tape on a machine different to the one it was recorded on—is a massive problem with video tape machines in general.

The tape transport is a sensitive mechanism and can be easily knocked out of sync. If the initial recording was made with a mis-aligned machine it is not certain to play back on another, differently aligned machine. Slow recording complicates alignment further, as there is more room for error in the recording process.

The preservation of Long and Extended Play VHS recordings is therefore fraught with challenges that are not always immediately apparent.

(Re)appraising VHS

Aesthetically, VHS continues to be celebrated in art circles for its rendering of the ‘poor image’. The decaying, unstable appearance of the VHS signal is a direct result of extended recording times that threaten its practical ability to endure.

Variation of recording time is the key point of distinction within the VHS format. It dramatically affects the quality of the original recording and dictates the equipment a tape can be played back on. With this in mind, we need to distinguish between standard, long and extended play VHS recordings when appraising collections, rather than assuming ‘VHS’ covers everything.

One big stumbling block is that you cannot tell the recording speed by looking at the tape itself. There may be metadata that can indicate this, or help you make an educated guess, but this is not always available.

We recommend, therefore, to not assume VHS—and other formats that straddle the domestic/ professional divide such as DVCAM and 8mm video—is ‘safe’ from impending obsolescence. Despite the apparent availability and familiarity of VHS, the picture in reality is far more complex and nuanced.

***

As ever, Greatbear are more than happy to discuss specific issues affecting your collection.

Get in touch with us to explore how we can work together.

Posted by debra in digitisation expertise, video tape, 1 comment
18
May
2015

Analogue to analogue – the Courtyard Music Group

Greatbear were recently approached by the Courtyard Music Group to help them complete the 100% analogue re-issue of their 1974 acid-folk album Just Our Way of Saying Hello.

Among Britfolk enthusiasts, news of the Courtyard Music Group’s plans to re-issue their album has been greeted with excitement and anticipation.

Just Our Way of Saying Hello was created when ‘an idealistic young teacher cut a lo-fi folk-rock record with a bunch of teenagers in the Utopian rural setting of Kilquhanity School in the Scottish borders.’

100 copies of the album were made in a private pressing, originally intended for family and friends.

Yet this was not the end of the story, as the record went on to become ‘one of the most obscure albums in Britfolk history is now an ultra-rare collector’s item, with copies trading online for over £1000.’

After a hugely successful pledge music campaign, the band are pushing ahead with their re-issue project that will produce a limited pressing of the mono vinyl, a remastered audio CD with outtakes and a 48 page booklet with interviews, photos and drawings. These will all be available in the summer of 2015.

Great Bear’s role in the project was twofold: first to restore the physical condition of tapes in order to achieve the best quality transfer. Second to produce analogue copies of the original master tapes. These second generation masters, originally recorded at a speed of 7½ inches per second, were transferred at the speed of 15 ips in our studio.

These copies were then sent to Timmion Records in Finland to complete the final, analogue only cutting of the re-issue. Even amid the much discussed ‘vinyl revival‘ there are currently no UK-based studios that do pure analogue reproductions. The risk of losing precious cargo in transit to Finland was too great, hence our involvement at the copying stage.

original master tapes - Courtyard Music Group

The original master tapes

Analogue only

Why was it so important to members of the Courtyard Music Group to have an analogue only release? Digital techniques began creeping into the production of audio recordings from the late 1970s onwards, to the situation today where most studios and music makers work in an exclusively digital environment.

Can anyone really tell the difference between an analogue and digital recording, or even a recording that has been subject to a tiny bit of ‘digital interference’?

Frank Swales, member of the Courtyard Music Group, explains how remaining true to analogue was primarily a preference for authenticity.

‘I think in this case it’s really about the JOURNEY that this particular product has had, and the measures taken to keep it as close to the original product as possible. So, I’m not sure anyone can, in a listening context, perceive any real difference between digital and analogue, given that all of us humans are pretty much restricted to the frequency range of 20Hz to 20kHz, if we’re lucky!’

While Richard Jones, also a member of Courtyard Music Group, revealed: ‘Our 1974 recording was made using a selection of microphones, some ribbon, a valve powered four channel mixer and an ancient Ferrograph tape recorder. I cannot claim these decisions about the analogue reissue are soundly based on principles of Acoustics/physics. They are decisions to produce an authentic product. That is, attempting to eliminate the introduction of “colours” into the sound which were not there in 1974.’

The ability to create exact copies is perilously difficult to achieve in an analogue context. Even in the most controlled circumstances analogue transfers are always different from their ‘original.’ The tape might distort at high frequencies for example, or subtle noise will be created as the tape moves through the transport mechanism.

Yet the desire for analogue authenticity is not the same as wanting a replica. It is about preserving historically specific sound production process whose audible traces are becoming far less discernible.

After all, if authenticity was correlated with exact replication, the Courtyard Music Group would not have asked us to make the copies at a higher recording speed than the originals. Yet, Frank explains, ‘the difference in sound quality – the tracks especially having been recorded onto tape travelling at 15ips – will likely be negligible, but it must be said that this was a decision not lightly taken.’

By preserving the historical authenticity of analogue reproduction, the Courtyard Music Group re-issue project converges with the archival concern to maintain the provenance of archival objects. This refers to when the ‘significance of archival materials is heavily dependent on the context of their creation, and that the arrangement and description of these materials should be directly related to their original purpose and function.’

For a range of audiovisual objects made in the late 20th and early 21st centuries, such fidelity to the recording and its context will be increasingly difficult to realise.

As appropriate playback machines and recordable media become increasingly difficult to source, an acceptance of hybridity over purity may well be necessary if a whole range of recordings are to be heard at all.

We are not yet at that stage, thankfully, and Greatbear are delighted to have played a part in helping spread the analogue purity just that little bit further.

***Thanks to Courtyard Music Group members for answering questions for this article.***

Posted by debra in audio tape, 0 comments
19
Sep
2014

Phyllis Tate’s Nocturn for Four Voices 3″ 1/4 inch reel to reel tape transfer

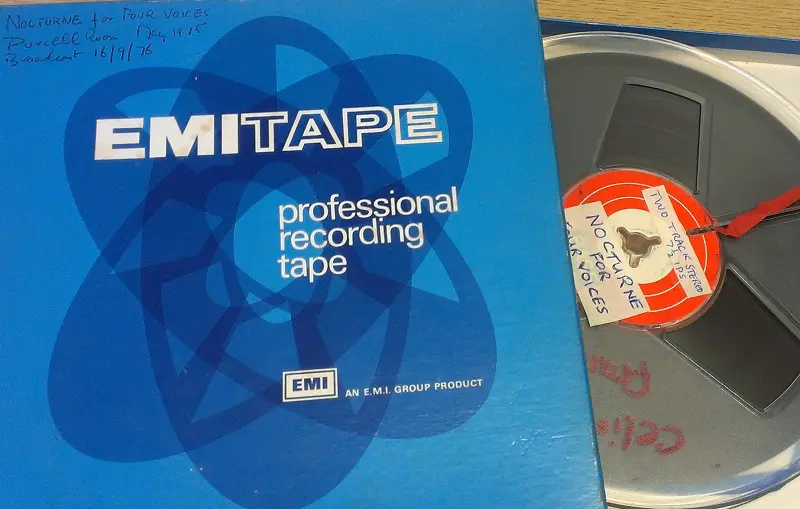

We have recently transferred a previously unpublished 3” ¼ inch tape recording of British 20th century composer Phyllis Tate’s Nocturn for Four Voices. The tape is a 2-track stereo recording made at 7.5 inches per second (in/s) at the Purcell Room in London’s Southbank Centre in 1975, and was broadcast on 16 September 1976.

When migrating magnetic tape recordings to digital files there are several factors that can be considered to assess the quality of recording even before we play back the tape. One of these is the speed at which the tape was originally recorded.

Diagramme of track widths on magnetic tape, and the relative thicknesses of 1, 2 and 4 track recordings

Generally speaking, the faster the speed the better the reproduction quality when making the digital transfer. This is because higher tape speeds spread the recorded signal longitudinally over more tape area, therefore reducing the effects of dropouts and tape noise. The number of tracks recorded on the tape also has an impact on how good it sounds today. Simply put, the more information stored on the tape due to recording speed or track width, the better the transfer will sound.

The tape of Nocturn for Four Voices was however suffering from binder hydrolysis and therefore needed to be baked prior to play back. EMI tape doesn’t normally do this but as the tape was EMI professional it may well have used Ampex stock and / or have been back coated, thus making the binder more susceptible to such problems.

Remembering Phyllis Tate

Nocturn for Four Voices is an example of how Tate ‘composed for unusual combinations of instruments and voice.’ The composition includes ‘Bass Clarinet, Celeste, String Quartet and Double Bass’, music scholar Jane Ballantyne explains.

The tape was brought into us by Tate’s daughter, Celia Frank, who is currently putting the finishing touches to a web archive that, she hopes, will help contemporary audiences (re)discover her mother’s work.

Like many women musicians and artists, Phyllis Tate, who trained at the Royal Academy of Music, remains fairly obscure to the popular cultural ear.

This is not to say, of course, that her work did not receive critical acclaim from her contemporaries or posthumously. Indeed, it is fair to say that she had a very successful composing career. Both the BBC and the Royal Academy of Music, among others, commissioned compositions from Tate, and her work is available to hire or buy from esteemed music publishers Oxford University Press (OUP).

Edmund Whitehouse, who wrote a short biography of the composer, described her as ‘one of the outstanding British composers of her generation, she was truly her own person whose independent creative qualities produced a wide range of music which defy categorisation.’

Her music often comprised of contrasting emotional registers, lyrical sections and unexpected changes of direction. As a writer of operattas and choral music, with a penchant for setting poetry to music, her work is described by the OUP as the product of ‘an unusual imagination and an original approach to conventional musical forms or subjects, but never to the extent of being described as “avant-garde”.’

Tate’s music was very much a hit with iconic suffrage composer Ethel Smyth who, upon hearing Tate’s compositions, reputedly declared: ‘at last, I have heard a real woman composer.’ Such praise was downplayed by Tate, who tended to point to Smyth’s increased loss of hearing in later life as the cause of her enjoyment: ‘My Cello Concerto was performed soon afterwards at Bournemouth with Dame Ethel sitting in the front row banging her umbrella to what she thought was the rhythm of the music.’ Open reel tape and box

While the dismissal of Smyth’s appreciation is tender and good humoured, the fact that Tate destroyed significant proportions of her work does suggest that at times she could have doubted her own abilities as a composer. Towards the end of her life she revealed: ‘I must admit to having a sneaking hope that some of my creations may prove to be better than they appear. One can only surmise and it’s not for the composer to judge. All I can vouch is this: writing music can be hell; torture in the extreme; but there’s one thing worse; and that is not writing it.’ As a woman composing in an overwhelmingly male environment, such hesitancies are perhaps an understandable expression of what literary scholars Gilbert and Gubar called ‘the anxiety of authorship.’

Tate’s work is a varied and untapped resource for those interested in twentieth century composition and the wider history of women composers. We wish Celia the best of luck in getting the website up and running, and hope that many more people will be introduced to her mother’s work as a consequence.

Thanks to Jane Ballantyne and Celia Frank for their help in writing this article.
